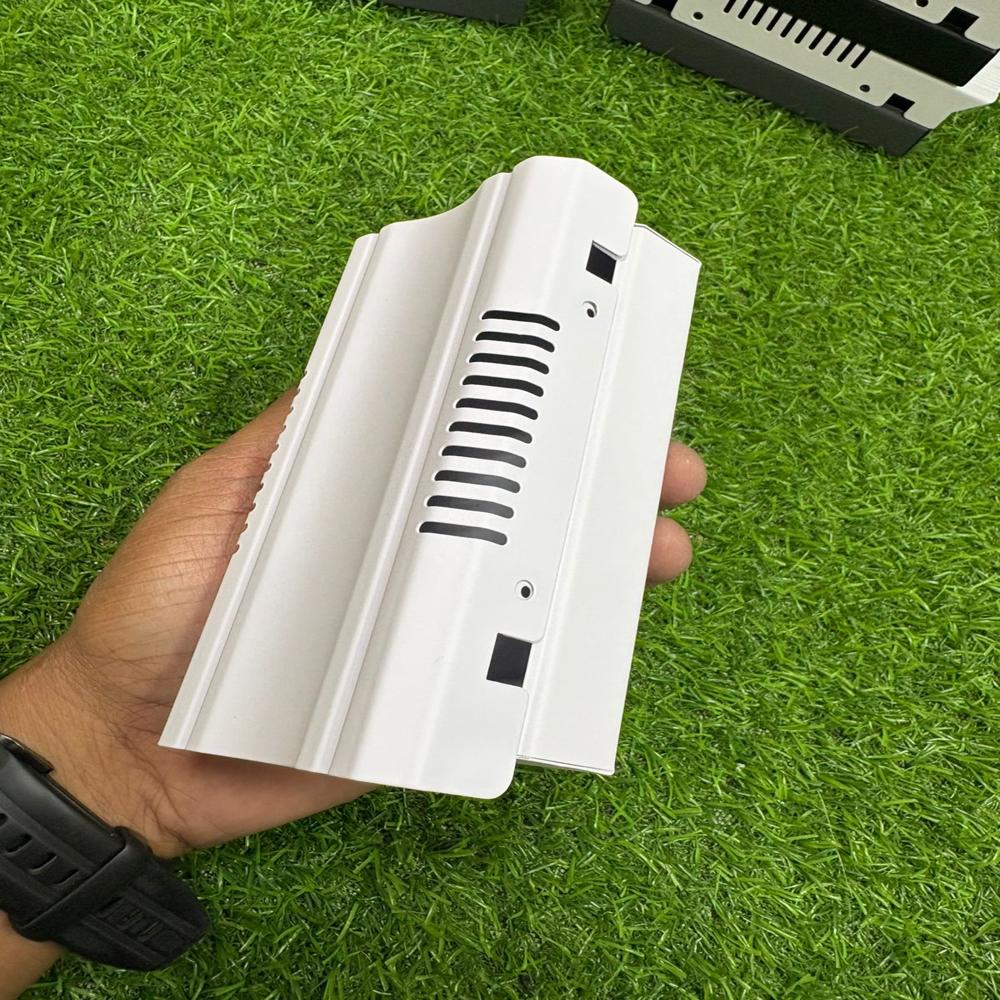

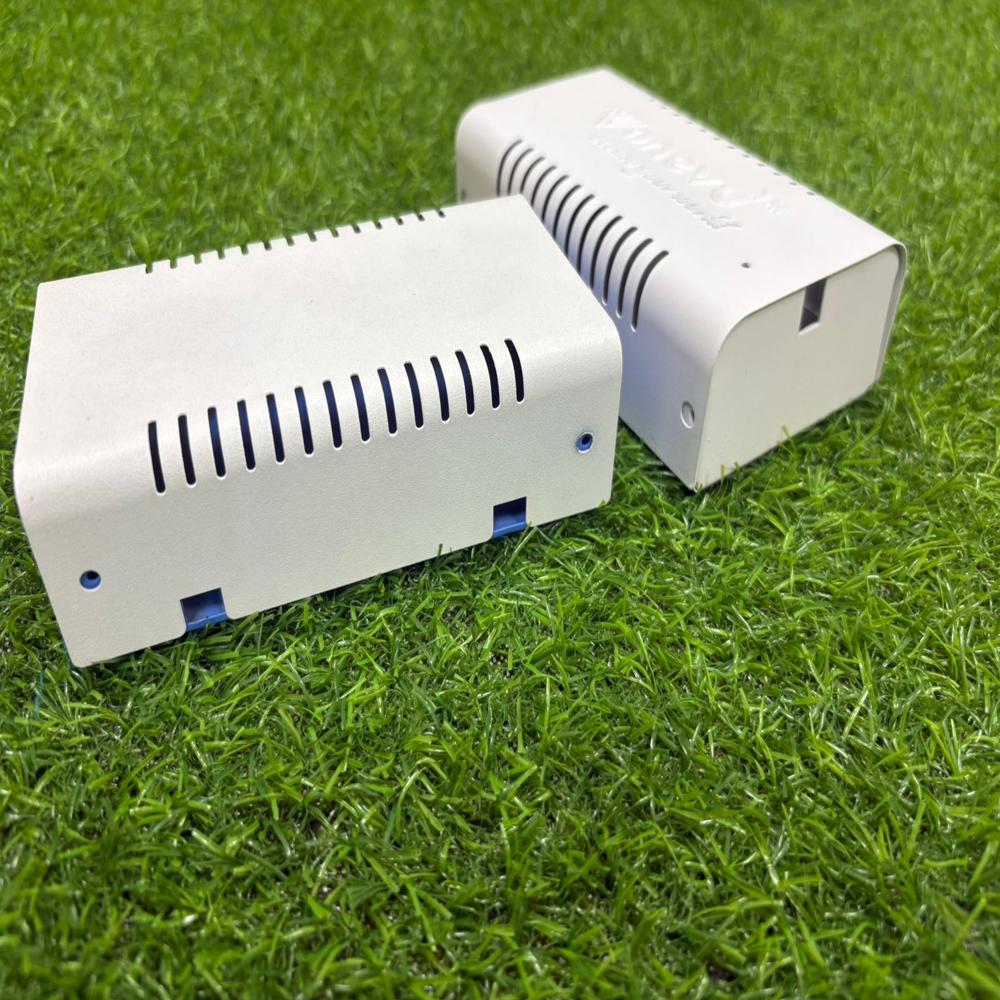

CCTV POWER SUPPLY ENCLOSURE

CCTV POWER SUPPLY ENCLOSURE Specification

Output Type
DC 12V Multiple Channels

Rated Power
120W

Application
CCTV Cameras, Security Systems

Operating Temperature
-10C to +50C

Features
Multi-channel Output, Surge Protection, LED Indicator for Each Channel

Phase
Single Phase

Power Factor
0.95

Connector Type
Screw Terminal

Rated Current
10A

Working Temperature
-10C to +50C

Power Supply
AC to DC

Noise Level
50dB

Output Current
10A (max)

Cooling Method
Natural Air Cooling

Current Range
0-10A

Product Type
CCTV Power Supply Enclosure

Output Power
120W

Output Frequency
50/60 Hz

Input Voltage
AC 100-240V, 50/60Hz

Voltage Protection
Over Voltage Protection, Short Circuit Protection

Efficiency
>85%

Material
Powder Coated Metal

Line Regulation
0.5%

Storage Temperature
-40C to +85C

Weight
Approx. 2.5 Kg

Number of Output Channels
8/16 (option available)

Cable Entry
Knockout Holes Available

Input Fuse Protection
Yes

Dimensions (LxWxH)
280mm x 220mm x 60mm

Enclosure Color
Grey

Installation Type
Wall Mountable

LED Indicators
Yes, for Each Channel

Output Voltage Precision
2%

Lock Facility
Yes (Key Lock)

CCTV POWER SUPPLY ENCLOSURE Trade Information

Minimum Order Quantity
5000 Pieces

Delivery Time
7 Days

About CCTV POWER SUPPLY ENCLOSURE

WE ARE MANUFACTURING METAL HOUSING OF

- CCTV power supply enclosure

- Metal housing for CCTV power supply

- CCTV power supply cabinet

- Power supply metal case

- CCTV power enclosure

- Metal CCTV power supply box

- CCTV power supply housing

- Rackmount CCTV power supply

- CCTV power supply metal rack

Robust Multi-Channel Output

Power up to 8 or 16 CCTV cameras or security devices simultaneously with dedicated channels, ensuring every camera receives reliable and consistent power. Each output is clearly signaled by an LED indicator for easy troubleshooting and maintenance, eliminating guesswork in busy installations.

Secure and Durable Construction

The enclosure is constructed from powder-coated metal for durability and enhanced protection. Its key-operated lock ensures that only authorized personnel have access, making it ideal for sensitive surveillance environments. It is wall mountable for space-saving, secure installation.

Advanced Protections and Efficiency

Engineered with over-voltage, surge, and short-circuit protection, this enclosure safeguards your security investments. Input fuse protection and high power efficiency above 85% combine to maximize reliability and minimize energy loss, supporting stable operation in demanding conditions.

FAQ's of CCTV POWER SUPPLY ENCLOSURE:

Q: How do I install the CCTV Power Supply Enclosure?

A: The enclosure is designed for wall mounting using screws at designated points. Use the provided knockout holes for organized cable entry and connect your AC supply and camera outputs to the screw terminal connectors. Ensure that installation follows safety guidelines and is performed in a well-ventilated, secure location.

Q: What benefits does having individual LED indicators for each channel offer?

A: LED indicators for each channel allow quick visual monitoring of power status. If an output channel malfunctions or loses power, the corresponding LED will turn off, streamlining troubleshooting and reducing system downtime.

Q: When should I use the multiple output channels feature?

A: Utilize the multiple channels when powering several CCTV cameras or security devices from a single power source. The enclosure offers options for 8 or 16 channels, providing flexibility for small to large surveillance systems.

Q: What levels of protection does this power supply enclosure provide?

A: It offers over-voltage, short circuit, and surge protection, alongside input fuse protection to shield connected equipment against power anomalies and electrical faults, enhancing long-term reliability.

Q: Where can this enclosure be installed and used?

A: Best suited for indoor environments, the enclosure can be wall-mounted in security rooms, offices, retail outlets, and access-controlled spaces across facilities requiring reliable CCTV camera power distribution.

Q: How does the locking mechanism enhance security?

A: The key-operated lock restricts access to the internal wiring and fuses, ensuring only authorized personnel can manage system operations or make wiring changes, thereby protecting against tampering and unauthorized adjustments.

Q: What makes this unit suitable for Indian power conditions?

A: It supports wide input voltage (AC 100-240V, 50/60Hz), provides robust voltage regulation (0.5%), and has been engineered for common Indian electrical scenarios, ensuring compatibility and stable operation within the country.
